Aperçu /Produits/manomètre d'indicateur de pression/63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range

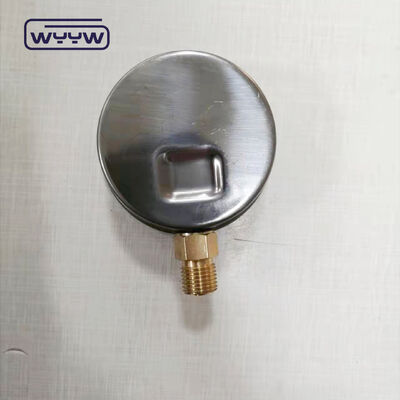

63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range

200 pièces
MOQ
Depends on total quantity
Prix
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
accompagnement personnalisé: OEM, ODM, OBM
Matériel: Casse en acier inoxydable
Lieu d'origine: FABRIQUÉ EN CHINE
Taille de cadran: 63 mm
Plage de pression: Fabriqué selon les exigences, Mpa, bar, psi, kg, etc.
Monter: Bas
Précision: 2,5%
Garantie: 1 an
Port: Qingdao, Shanghai, Tianjin et Ningbo. Je suis désolé.
Avantages: Résistant à l'humidité, résistant à l'usure, respectueux de l'environnement, hautement d
Informations de base
Lieu d'origine: Qingdao, Chine
Nom de marque: WYYW
Certification: CE & ISO9001
Numéro de modèle: Le nombre de personnes concernées
Conditions de paiement et expédition
Détails d'emballage: Sac en plastique intérieur, carton d'exportation sur le côté. Palette en option.
Délai de livraison: 5-30 jours
Conditions de paiement: TT,LC.Alipay.Western Union
Capacité d'approvisionnement: 30-50k par mois
Description de produit
Chinse Factory 63mm Oil Filled Mud Pump Pressure Gauge
mud pump pressure gauge
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 0
Product Description
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 1
Name Oil filled pressure gauge
Dials Size 40/50/63/100/150mm (or custom size available)
Case Stainless steel case
Pressure Mpa, other scale units bar, psi, kg/cm2 etc. optional
Ring None
Movement Brass
Socket Brass
Bourdon tube Bronze
Dial plate and pointer Aluminum
Window Acrylic / Plastic
Connection sizes 1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6"
Connection threads Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting Bottom/Back and panel
Accuracy 1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitation Steady: 3/4x full scale value
Fluctuation: 2/3x full scale value
Short time: full scale value
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 2 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 3 63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 4
Product Application
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
63mm Oil Filled Mud Pump Pressure Gauge with Stainless Steel Case and Customizable Pressure Range 5
